Sudoku

Sudoku

Generator: Mathematical approach

There are two main approaches to generate a Sudoku puzzle. The first one is to generate a board with some random numbers and positions, then try if the Sudoku is solvable. The second one is to have a fully solved board, then remove numbers randomly.

This generator takes the second approach, where it is still needed to generate a fully solved board. By completely ignoring hardcoding one solved board, it is crucial to understand the mathematics of the board to be able to generate a new board.

Considering a Sudoku board as an $M*N$ board, stating that $M$ and $N$ can be greater, equal or lower than 9; it is definet the number $k$ that defines the maximum value for the numbers to be placed in a row, column or mayor square.

$$ k = M * N $$

Considering the grid that corresponds to the Sudoku board, each minor cell is defined by the matrix coordinates $r$ (row) and $c$ (column).

Solver: Backtracking algorithm

The backtracking algorithm consists on making a (valid) number guess over an empty cell and sequentially continuing doing so until all cells have a number (puzzle solved) or a guess was incorrect.

This algorithm iterates over the next five steps:

  1. An empty space is found. It does not matter if the algorithm iterates over columns and then over rows, vice versa or takes a random coordinate to find an empty space. The goal is to start with an emtpy space.
  2. A guess is made. The guess is just any number which is not contained in the row, column or major tile. This guess is only a valid number to be positioned at the current tile, but it doesn't have to be the correct one.
  3. Continue iterating steps 1 and 2. With this, the tree continues expanding, creating new branches every time a new guess is made in a tile where multiple valid numbers can be used as a guess.
  4. Go back to the last created branch if the puzzle reach a tile in which no valid guesses can be done.
  5. Iterate until a solution is found.

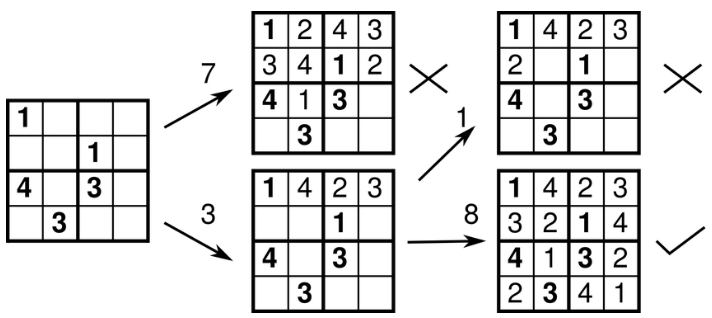

2x2 Sudoku board displaying a decision tree of the previous stated algorithm

These steps can lead to two possible outcomes:

  • A solution is found. It was possible to find a solution by the backtracking algorithm. This does not mean the found solution is the only solution.
  • No solution was found. In this case, we are positive all numbers were tried over all empty cells. The conclusion of this case is that the initial Sudoku board is not solvable.

Note: The solver could also be used to test if any randomly generated board is also a valid Sudoku puzzle.
